YCH7-125 Isolating Switch

Overview Parameter Installation File Download

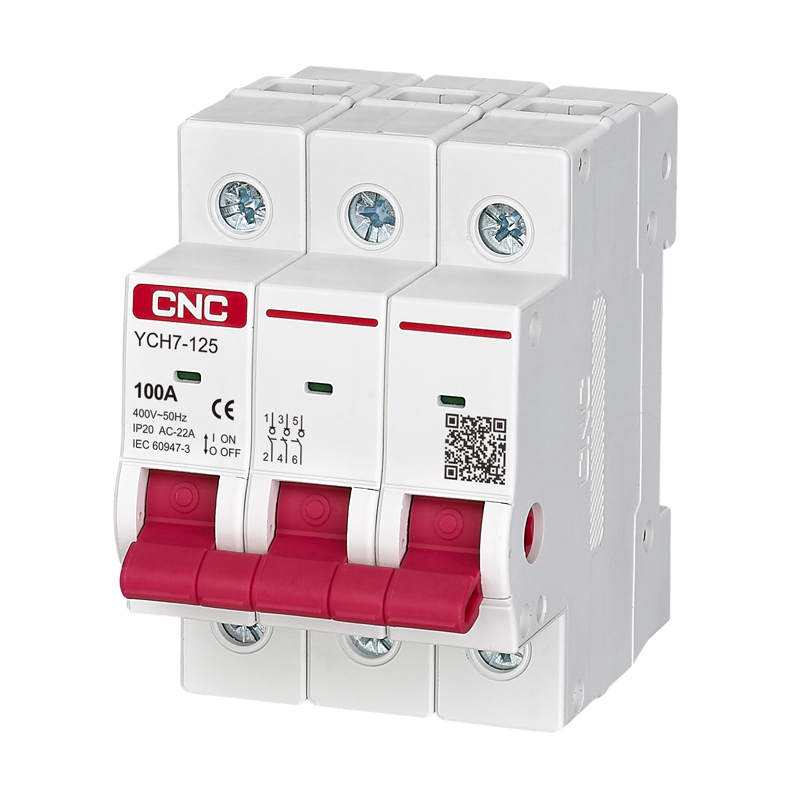

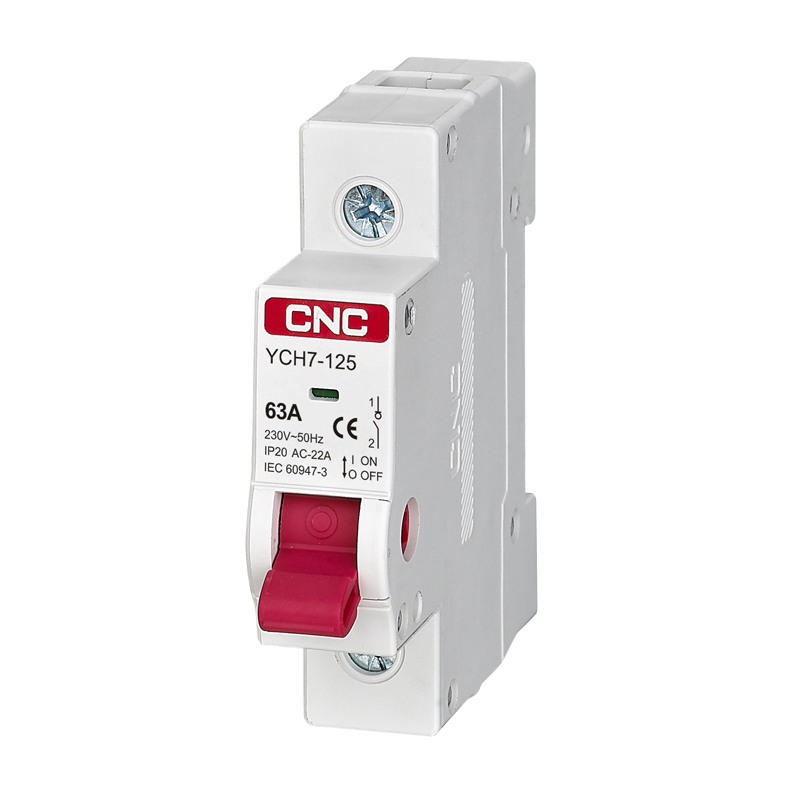

YCH7-125 Isolating Switch

Terminal double protection | Working current(20~125)A | 1P, 2P, 3P, 4P

已復制到剪切板

Micro curved surface design
On off indicating window
Terminal double protection
All copper current carrier

Parameter

Identify different items

Electrical parameters

Model

Frame current

Rated working voltage Ue(V)

Pole

Rated working current Ie(A)

Rated short-time withstand current Icw

Rated residual connecting and breaking capacity Icm

Rated impact withstand voltage Uimp(kV)

Mechanical life

Electrical life

Standard

Certification

YCH7-125

125

AC230V, AC400V

1P, 2P, 3P, 4P

20, 32, 40, 63, 80, 100, 125

12Ie(power-on time is 1s)

20Ie(power-on time is 0.1s)

(1.2/50μs, 2000m) 6kV

8500

1500

IEC 60947-3

Wiring selection

Installation

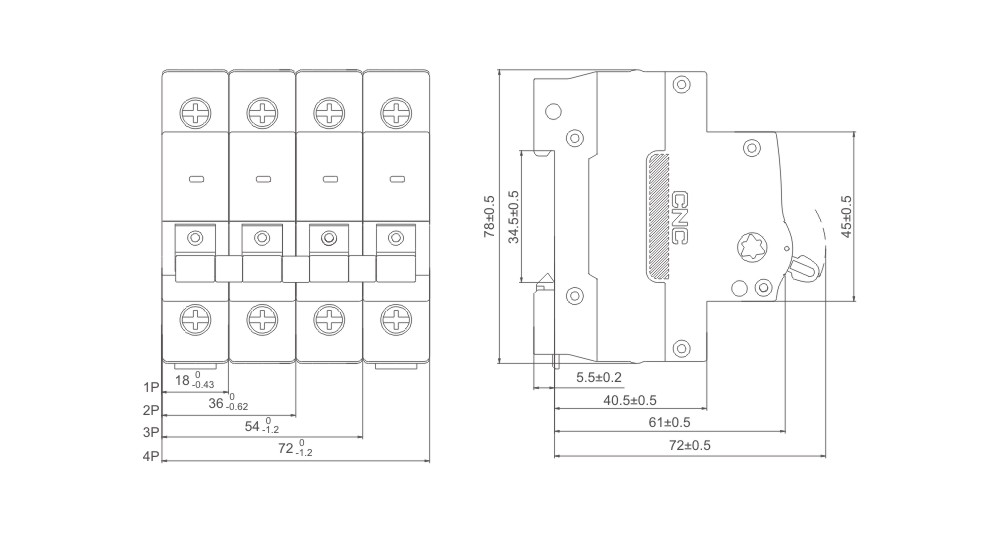

YCH7-125 Overall and mounting dimensions(mm)

File Downloads

Product Catalog

YCH7-125 Catalog.pdf

Note: The product continues to innovate and its performance continues to improve.
This technical parameter is for reference only.
