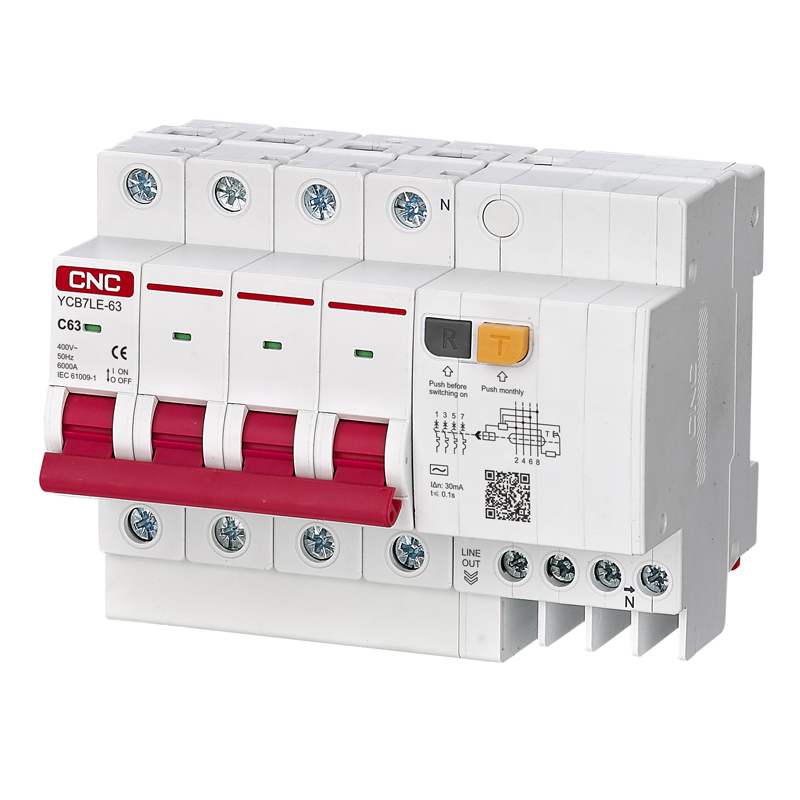

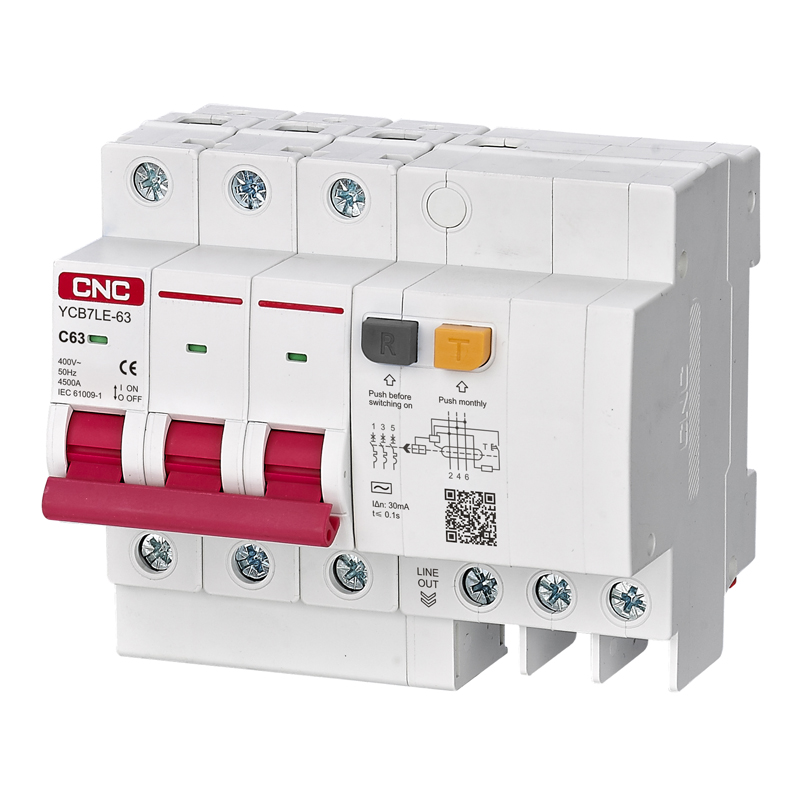

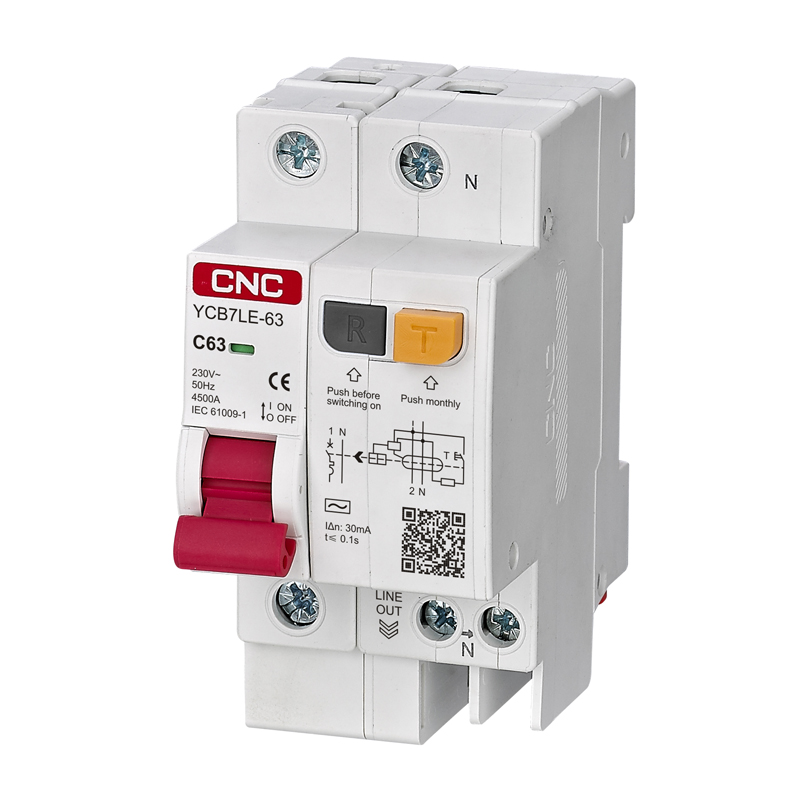

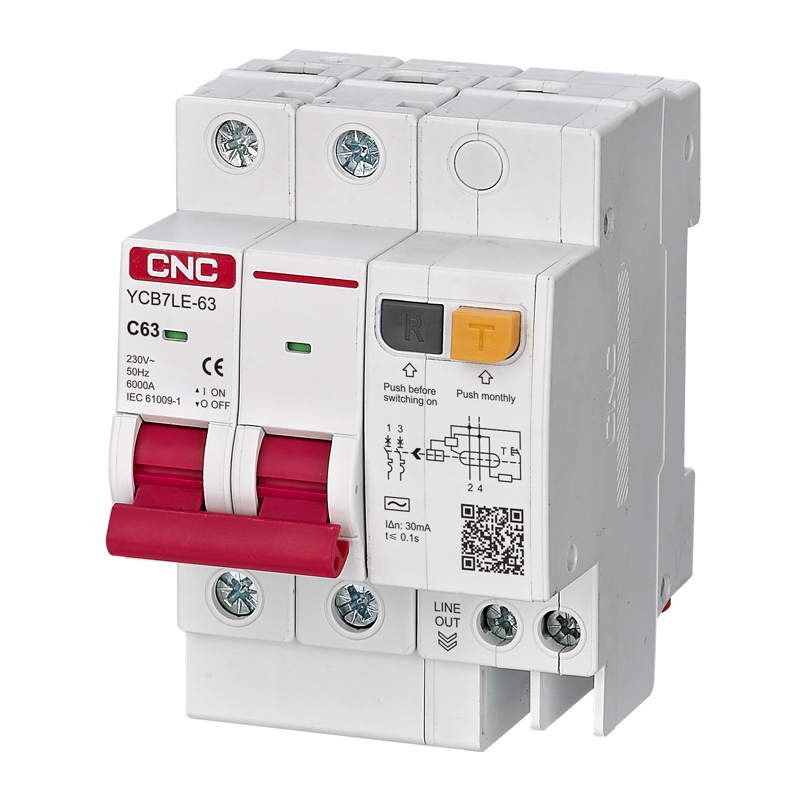

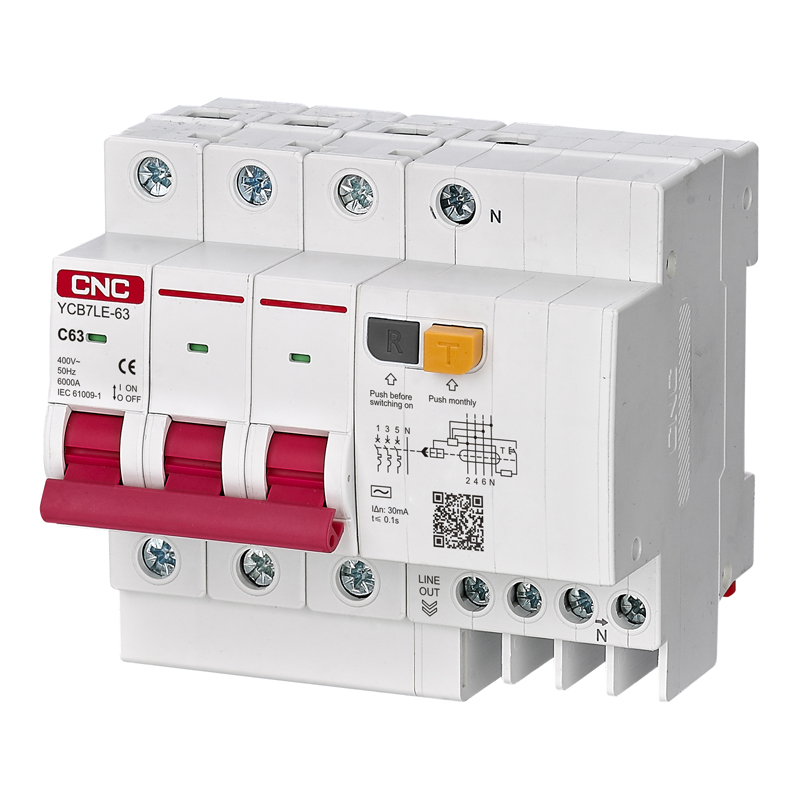

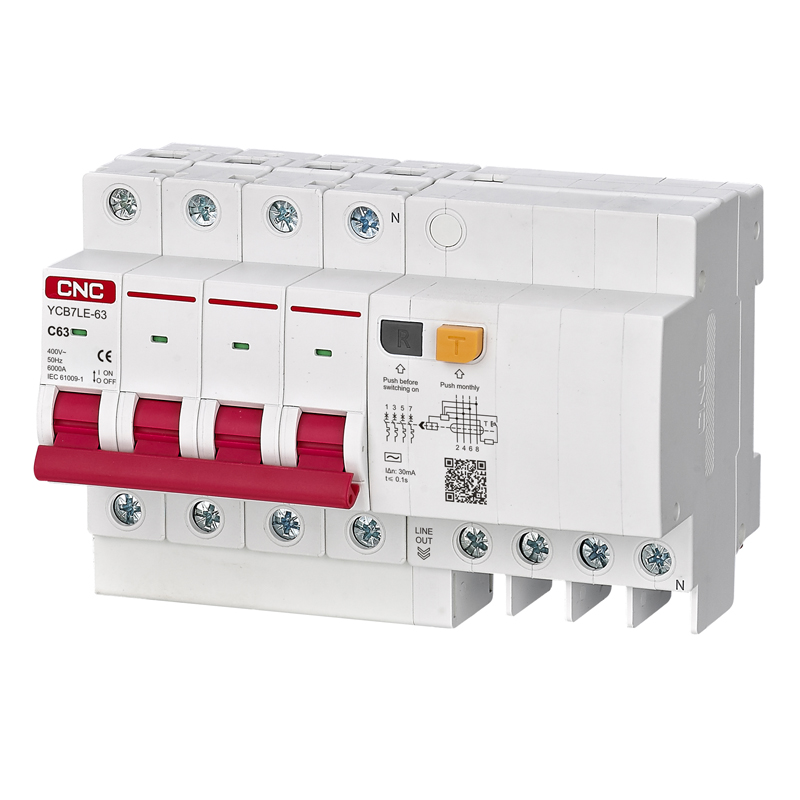

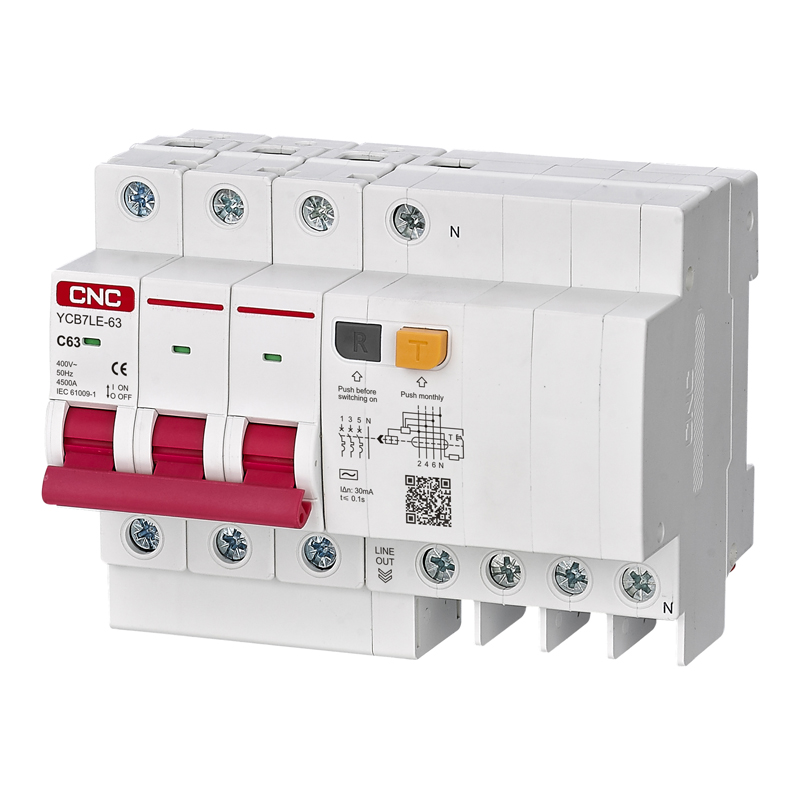

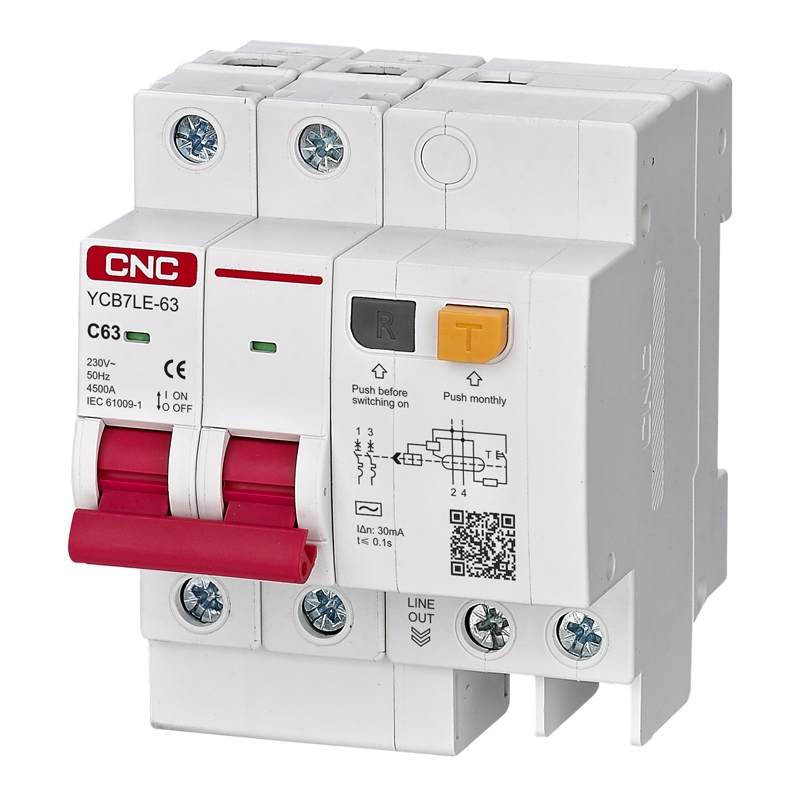

YCB7LE-63 RCBO
6kA High breaking capacity | B, C, D Curve | 1P+N, 2P, 3P, 3P+N, 4P Poles | Small sheel/Big sheel can choose

  • Micro curved surface design

  • Humanized handle

  • On off indicating window

  • Anti-crip

  • All copper current carrier

  • Precise leakage protection

Parameter

Identify different items

Electrical parameters

Model
Frame current
Rated insulation voltage
Rated current In(A)
Rated frequency
Instantaneous release type
Pole
Rated residual operation current
Rated short-circuit capacity Icn
Run short-circuit capacity Ics
Rated residual connecting and breaking capacity
Insulation impulse voltage capacity
Mechanical life
Electrical life
Grid distance
Protection class
Standard
Certification
YCB7LE-63
63
500V
6, 10, 16, 20, 25, 32, 40, 50, 63
50Hz
B, C, D
1P+N, 2P, 3P, 3P+N, 4P
0.03A, 0.05A, 0.1A
6kA
6kA
2kA
a. Each pole connected together with the neutral pole,can withstand the peak impact voltage of 6000V;
b. Each pole connected together with the neutral pole,can withstand the peak impulse voltage of 8000V between the metal bracket.
10000
4000
50mm
IP20
IEC 61009-1
CE
Installation

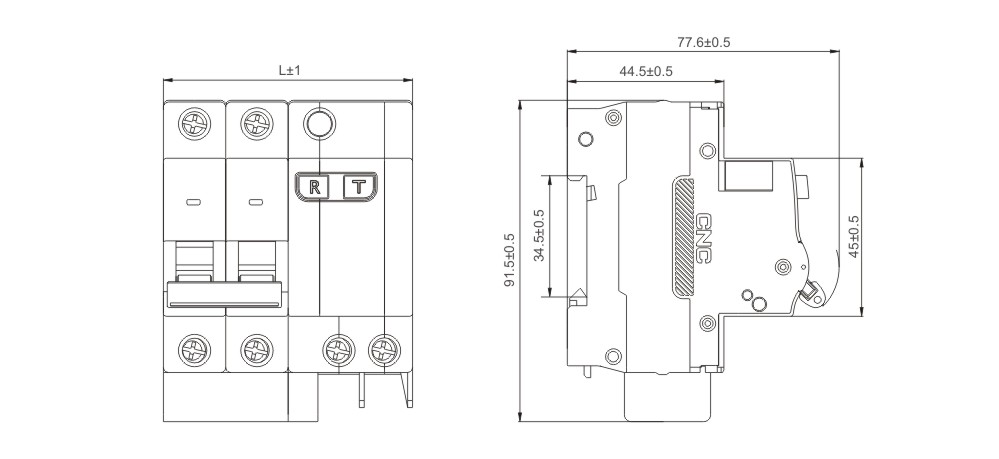

YCB7LE-63 Overall and mounting dimensions(mm)

YCB7LE-63(圖1)

Dimensions table

Pole
1P+N
2P
3P
3P+N
4P
Big shell size L(mm)
Small shell size L(mm)
53.3
42.2
71.1
62
101.9
88.8
114.9
97.8
132.7
115.6
Note: The product continues to innovate and its performance continues to improve.
This technical parameter is for reference only.
