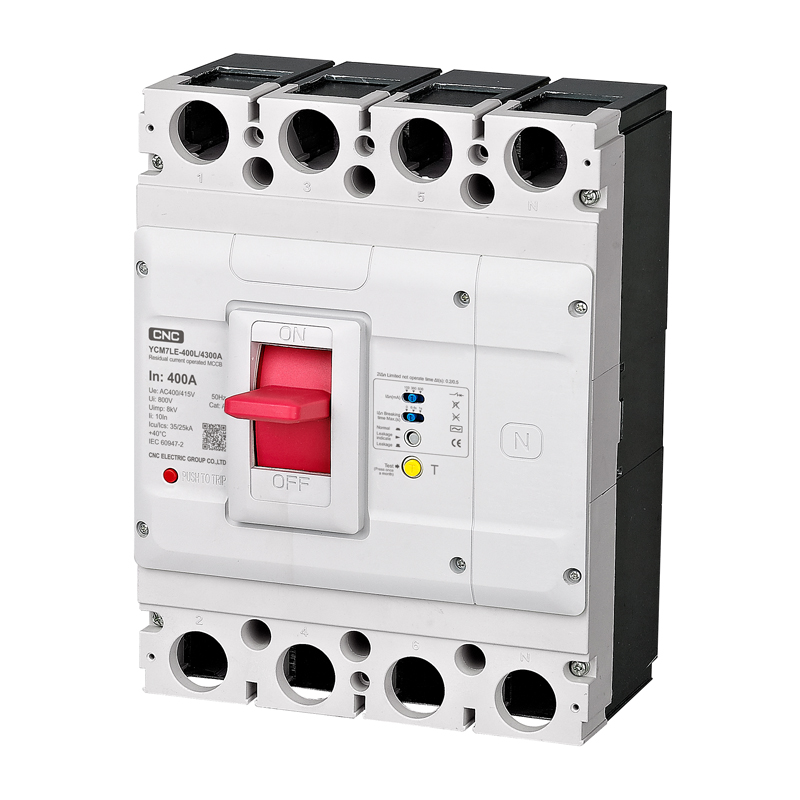

YCM7LE RCBO
Frame current(125-800) | Rated current(16-800)A | 4P

  • High-end surface design

  • Separate cover structure

  • Anti-creep tripping

  • Super environmental adaptability

Parameter

Identify different items

Electrical parameters

Model
Frame current Inm(A)
Rated current In(A)
Pole
Rated insulation voltage Ui(V)
Rated working voltage Ue(V)
Rated impact voltage Uimp(kV)
Flashover distance(mm)
Breaking capacity class
Rated limit short-circuit breaking capacity Icu(kA)
Rated operating short-circuit breaking capacity Ics(kA)
Rated residual short-circuit breaking capacity
Rated residual operating current IΔn(mA)(Non-delay type)
Rated residual operating current IΔn(mA)(Delay type)
Rated residual unoperating current IΔn(mA)
Operating performance(times)(Power on)
Operating performance(times)(Power off)
Residual current protection operating time
Max breaking time(S)(Non-delay type)
Max breaking time(S)(Delay type)
YCM7LE-125
YCM7LE-250
YCM7LE-400
YCM7LE-630
YCM7LE-800
125
250
400
630
800
16,20,25,32,40,50,63,80,100,125
100,125,140,160,180,200,225,250
225,315,350,400
400,500,630
400,500,630,700,800
4
4
4
4
4
800
800
800
800
800
AC400
AC400
AC400
AC400
AC400
8000
8000
8000
8000
8000
50
50
100
100
100
L,M
L,M
L,M,H
L,M,H
L,M,H
L:35;M:50
L:35;M:50
L:35;M:50;H:85
L:35;M:50;H:85
L:35;M:50;H:85
L:25;M:35
L:25;M:35
L:25;M:35;H:65
L:25;M:35;H:65
L:25;M:35;H:65
L:12.5;M:12.5
L:12.5;M:12.5
L:8.75;M:12.5;H:21.25
L:8.75;M:12.5;H:21.25
L:8.75;M:12.5;H:21.25
30/100/500,100/300/500
30/100/500,100/300/500
100/300/500
300/500/1000
300/500/1000
100/300/500
100/300/500
100/300/500
300/500/1000
300/500/1000
1/2IΔn
1/2IΔn
1/2IΔn
1/2IΔn
1/2IΔn
1500
1000
1000
1000
1000
8500
7000
4000
4000
4000
IΔn
2IΔn
5IΔn
10IΔn
10IΔn
0.3
0.15
0.04
0.04
0.04
0.4/1
0.4/1
0.4/1
0.4/1
0.4/1
Installation

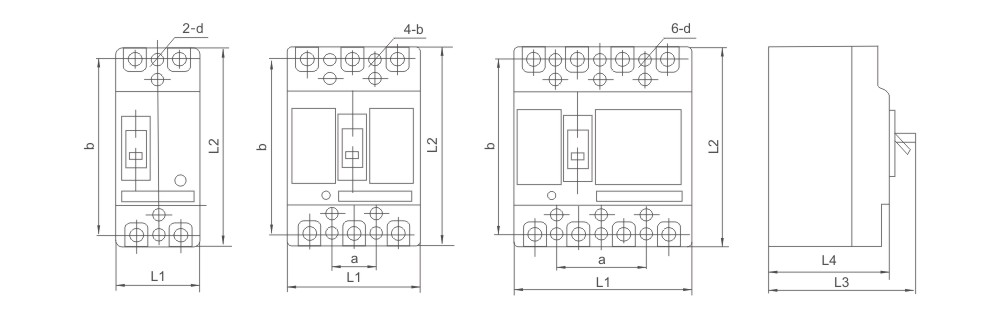

YCM7lE Overall and mounting dimensions(mm)

YCM7LE(圖1)

Dimension table(mm)

Note: The product continues to innovate and its performance continues to improve.
This technical parameter is for reference only.
