YCB7LE-63Y RCBO

Overview Parameter Installation File Download

YCB7LE-63Y RCBO

6kA High breaking capacity | C Curve | 2P(With a protection pole, N pole can be opened and closed)

已復制到剪切板

Micro curved surface design
Humanized handle
On off indicating window
Anti-crip
All copper current carrier

Parameter

Identify different items

Electrical parameters

Model

Frame current

Rated insulation voltage

Rated current In(A)

Rated frequency

Instantaneous release type

Pole

Rated residual operation current

Rated short-circuit capacity Icn

Run short-circuit capacity Ics

Rated residual connecting and breaking capacity

Insulation impulse voltage capacity

Mechanical life

Electrical life

Grid distance

Protection class

Standard

Certification

YCB7LE-63Y

500V

6, 10, 16, 20, 25, 32, 40, 50, 63

50/60Hz

2P(With a protection pole, N pole can be opened and closed)

0.03A, 0.05A

6kA

2kA

a. Each pole connected together with the neutral pole,can withstand the peak impact voltage of 6000V;
b. Each pole connected together with the neutral pole,can withstand the peak impulse voltage of 8000V between the metal bracket.

10000

4000

50mm

IP20

IEC 61009-1

Installation

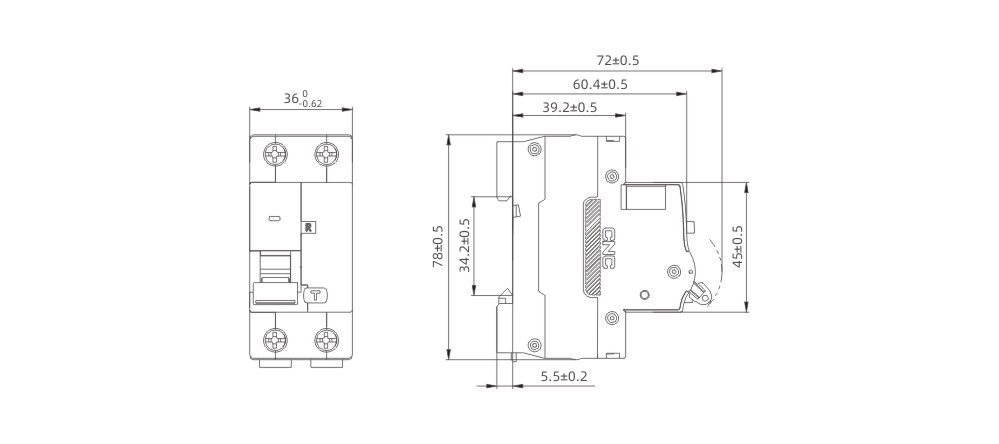

YCB7LE-63Y Overall and mounting dimensions(mm)

File Downloads

Product Catalog

YCB7LE-63Y Catalog.pdf

Note: The product continues to innovate and its performance continues to improve.
This technical parameter is for reference only.
